SEL Distribution
Senior Design · 2025—2026
SEL Distribution
System Simulator
A portable training platform that demonstrates distribution-grid faults, protection, and restoration behavior with a guided touchscreen interface.
01 / Overview
A complex system, made understandable.
The simulator turns protection and restoration logic into a visual sequence for demonstrations and training.
Simulate

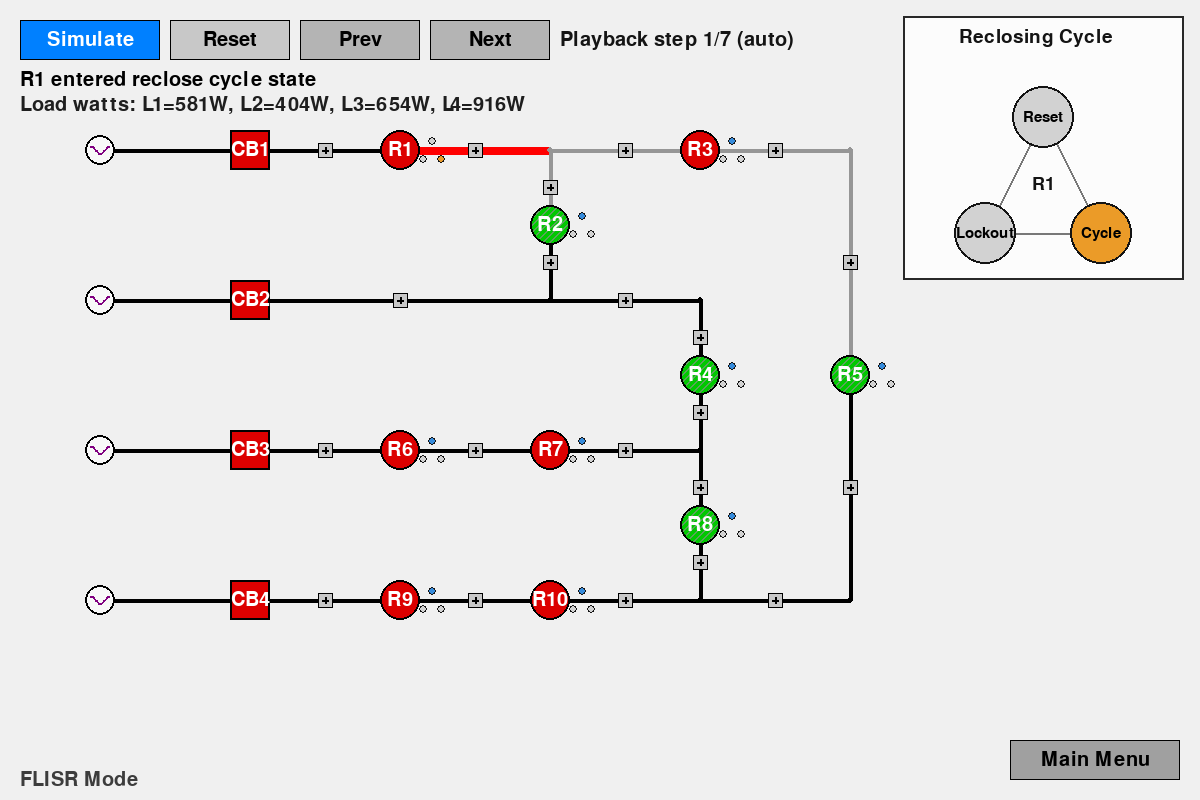

Generate line faults and step through isolation, recloser behavior, and restoration decisions.
Explain
Show each system state with clear messages, energized sections, switch status, and manual controls.
02 / Interactive demonstration
Run the original Pygame simulator.
The original Python/Pygame project now runs directly in the browser with the same SEL menu, diagrams, controls, and simulation logic developed for the senior design system.
- Normal fault location and isolation
- FLISR isolation and service restoration
- HDC stepped restoration sequence
No installation is required. The original version may take a few seconds to load its Pygame browser runtime.
Technologies
Python · Pygame · Raspberry Pi · JSON diagrams · Interactive UI
System behavior
Fault selection · Recloser cycling · Isolation · Load restoration · Step playback
Delivery

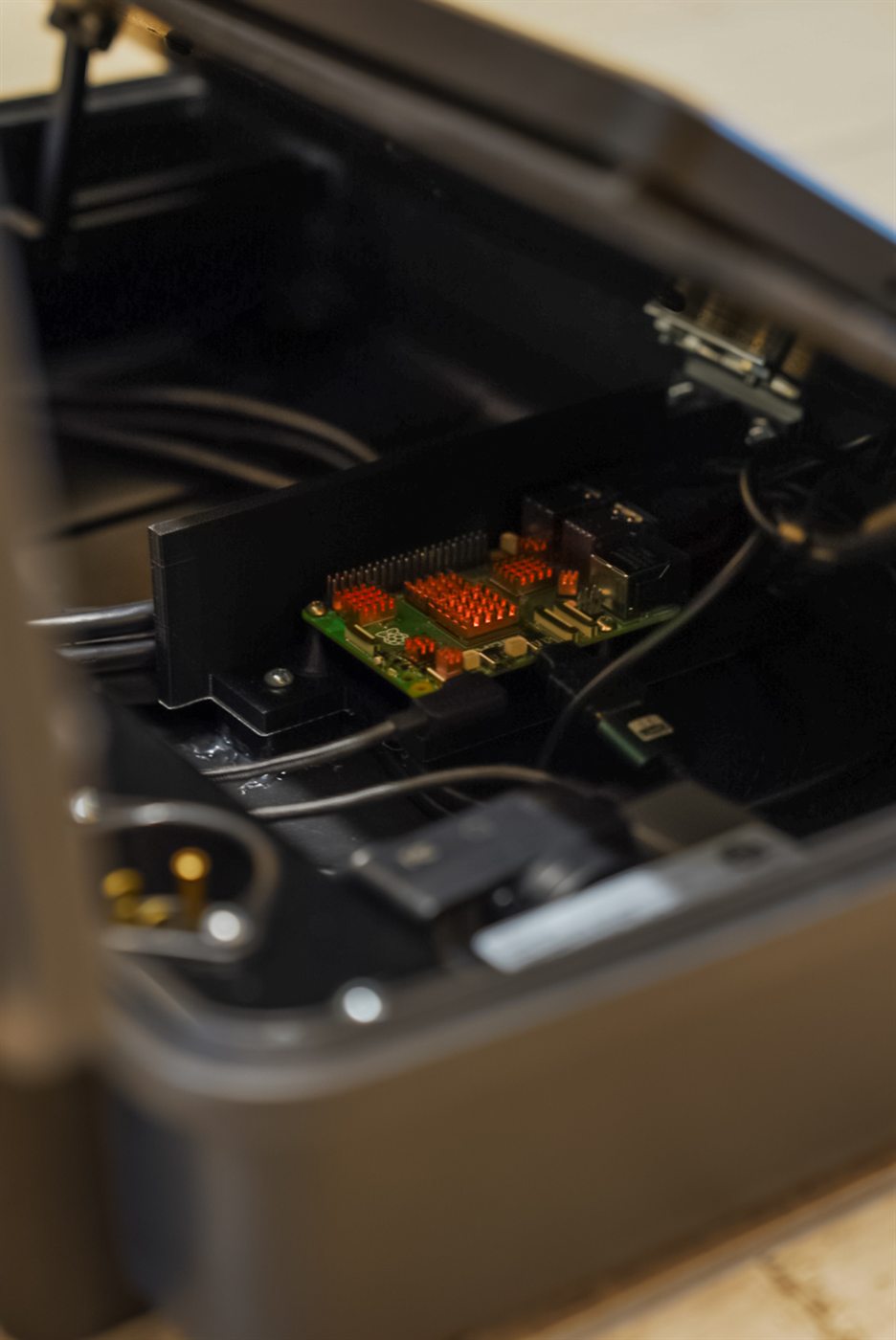

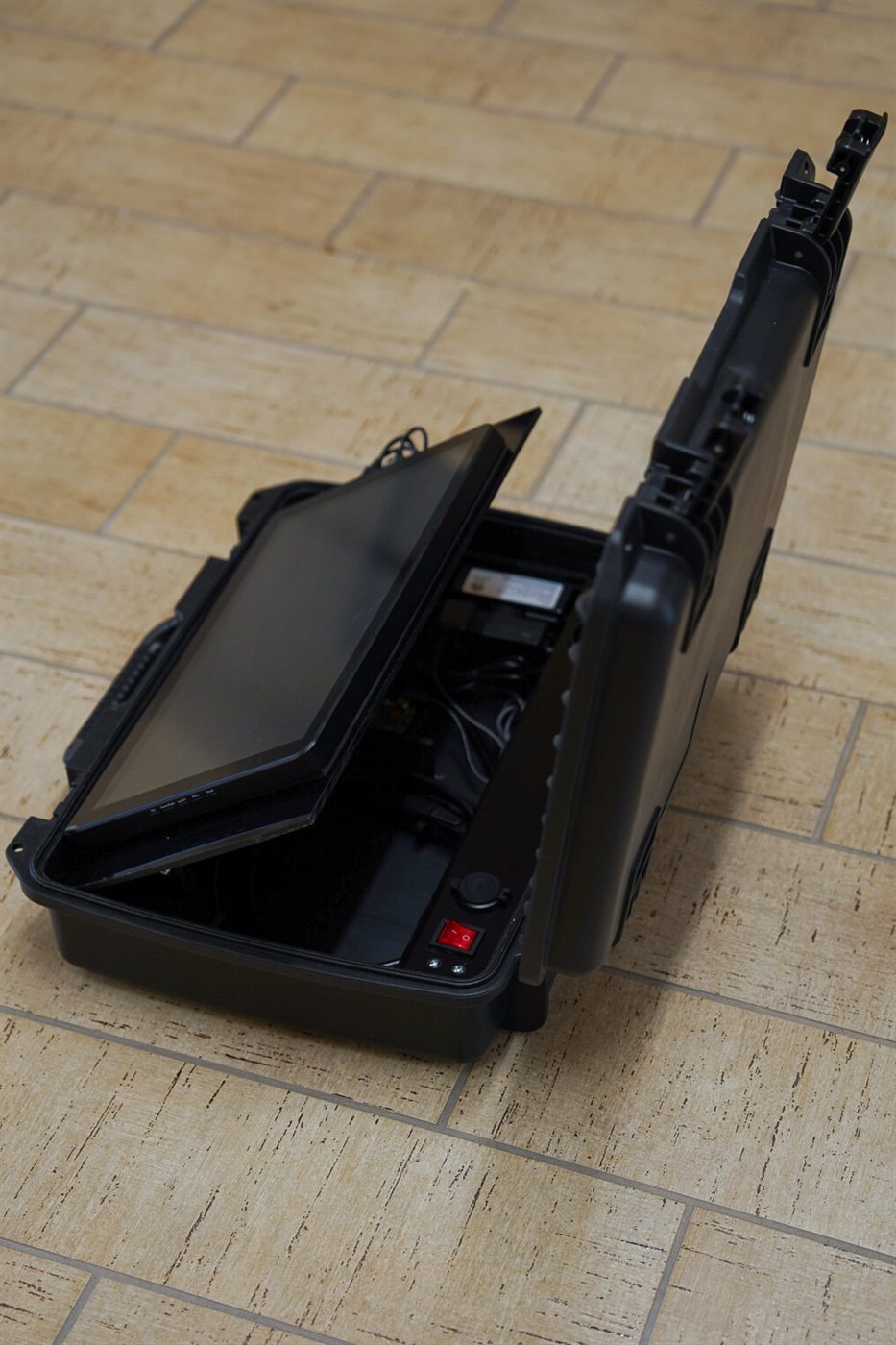

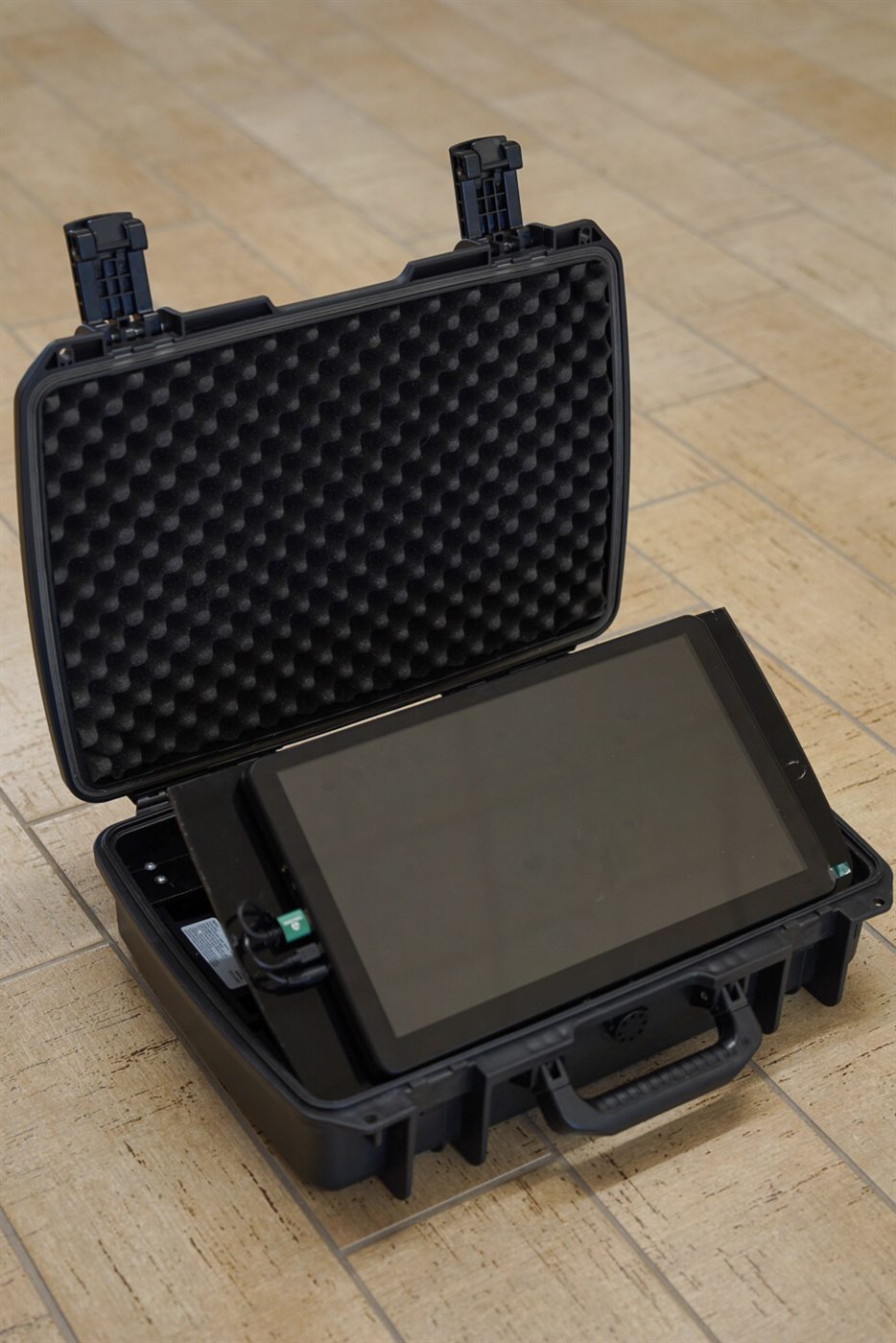

Portable hardware and software demonstration designed for training use.
